Please note that the new IBM Watson Assistant experience is not fully supported yet. So please switch to the classic experience using this guide

Following guide is going to present customization for the Watson Assistant on how to implement functions specifically for IBM Watson. It is intended for users who are familiar with IBM Watson cloud dashboard. Continue if you are familiar and have access to IBM Watson cloud dashboard.

Sending Encoded Metadata

Conversational Cloud Messaging platform provides a new metadata input type (“encodedMetadata”) for passing a base64 encoded metadata on a conversation. The new metadata input type is in addition to the existing conversation metadata input field. Third-party Bot also supports this property and this section will cover the information needed for you to send encoded metadata within your conversations. Before sending encoded metadata you must ensure the following conditions in order to successfully send the data.

Common.EncodedMetadata AC feature is ON
Content is base64 encoded
Metadata size is limited to 5k

Failing to comply with the above validation points will cause the message to be dropped. This feature is only available for the messaging conversations not for chat conversations

Encoded Metadata can be sent with simple Text, Rich Content (structured content) and Multiple responses. The encodedMetadata can be defined with context editor or using the JSON editor (Figure 3.1). In both ways, Third-Party Bot leverages the context variables to send the encoded metadata. The encoded metadata is passed throughout the conversation responses unless it is overwritten by upcoming encodedMetadata. Then the upcoming encodedMetadata will be passed along the responses.

Figure 3.1 Showing options of JSON editor and context editor

Be careful with the camel-case characters encodedMetadata you must provide it exactly the same.

Sending Watson Native Content with Encoded Metadata

Sending encoded metadata with the Native Content (Text, Image and Options) is possible using Watson context editor or also through the JSON editor. An example response definition for both ways can be seen below:

Figure 3.2 Showing context editor with the encoded metadata.

Example response body for JSON editor:

{
  "output": {
    "generic": [
      {
        "values": [
          {
            "text": "This is text with encoded metadata"
          }
        ],
        "response_type": "text",
        "selection_policy": "sequential"
      }
    ]
  },
  "context": {
    "encodedMetadata": "ewoiaWQiOiAidGV4dCIKfQ=="
  }
}

Sending Rich Content (Structured Content) with Encoded Metadata

Sending encoded metadata with the Native Content is possible using Watson context editor or also through the JSON editor. An example response definition for both ways can be seen below:

Figure 3.3 Showing context editor with the encoded metadata.

{
  "output": {
    "text": {
      "values": [
        {
          "metadata": [
            {
              "id": "1234",
              "type": "ExternalId"
            }
          ],
          "structuredContent": {
            "type": "vertical",
            "elements": [
              {
                "type": "button",
                "click": {
                  "actions": [
                    {
                      "text": "Recommend me a movie, please",
                      "type": "publishText"
                    }
                  ]
                },
                "title": "Recommend a movie"
              }
            ]
          }
        }
      ],
      "selection_policy": "sequential"
    }
  },
  "context": {
    "encodedMetadata": "ewoiaWQiOiAic2MiCn0="
  }
}

If you have a different context for multiple dialogs in a conversation that are responding with structure content, then you can define the encodedMetadata for each of the dialog separately. In that case, you will not define encodedMetadata via context editor or inside context property if using JSON editor. Below example shows where encodedMetadata property should be placed in structured content. Please note you will have to use JSON editor for defining such case:

{
  "output": {
    "text": {
      "values": [
        {
          "encodedMetadata": "ewoiaWQiOiAic2MiCn0=",
          "metadata": [
            {
              "id": "1234",
              "type": "ExternalId"
            }
          ],
          "structuredContent": {
            "type": "vertical",
            "elements": [
              {
                "type": "button",
                "click": {
                  "actions": [
                    {
                      "text": "Recommend me a movie, please",
                      "type": "publishText"
                    }
                  ]
                },
                "title": "Recommend a movie"
              }
            ]
          }
        }
      ],
      "selection_policy": "sequential"
    }
  },
  "context": {}
}

Sending Private Text Message

It is possible to send a private text message from the Live Engage (LE-UI) via agent workspace. This feature can now be used via the Third-Party bots as well. This will allow Brands to define private message text within the conversational flow of the bot. These messages are published into the conversation for other Agent/Manger participants. This enables Brands to customize messages giving more insight, summarizing actions taken by the bot, or also advising on next actions the handover agent should take.

Please note If you have not migrated to new Agent Workspace you will not be able to see the Private message indicator in the conversation window. Nevertheless, private text messages will not be shown to the consumer and only remain visible to Agents and Managers.

Please note private text message will never be shown to the consumer and will be visible only inside the conversation window of agent workspace. The private text message can be added via Watson's JSON editor (as shown in Figure 9.1). There are two properties, text and messageAudience required for sending a private text message.

key	value	notes
text	any string value	mandatory
messageAudience	value should be "AGENTS_AND_MANAGERS"	case-sensitive, mandatory

Figure 3.4 Showing JSON editor option access via Watson Assistant.

It is possible to send only a private text message response. The example payload of such response is below (also Figure 3.5 JSON Editor view):

{
  "output": {
    "text": {
      "values": [
        {
          "text": "This is a private text",
          "messageAudience": "AGENTS_AND_MANAGERS"
        }
      ],
      "selection_policy": "sequential"
    }
  }
}

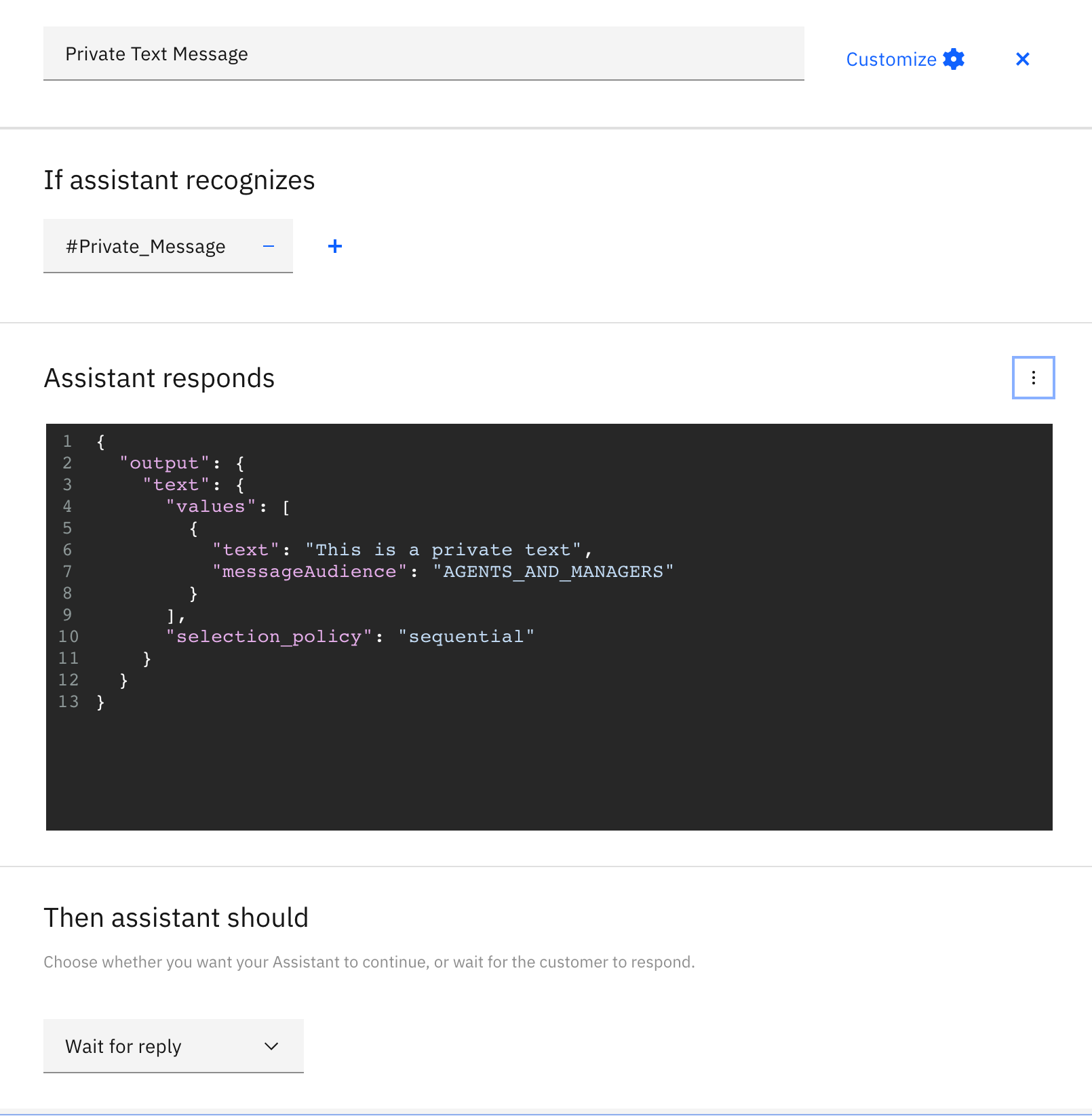

Figure 3.5 Showing single private text message definition inside JSON Editor

It is also possible to send a private text message with the action (e.g. Transfer / Escalations). Example payload of such a case (Private Text Message — Action) will be as below:

{
  "output": {
    "text": {
      "values": [
        {
          "text": "This is a private text",
          "messageAudience": "AGENTS_AND_MANAGERS"
        }
      ]
    }
  },
  "actions": [
    {
      "name": "TRANSFER",
      "type": "client",
      "parameters": {
        "skill": "human_skill"
      },
      "result_variable": "none"
    }
  ]
}

Invoke LivePerson Function

During a conversation, it is possible to trigger a LivePerson Function that is deployed to the LivePerson Functions (Function as a Service) platform. This provides a way to run custom logic with a bot.

To invoke a LivePerson Function, we utilize the action object as we did for a bot action. In Figure 3.6 below, the Watson Assistant JSON response should be mirrored as follows:

{
  "output": {
    "text": {
      "values": [
        "Trigger LivePerson Function"
      ]
    }
  },
  "actions": [
    {
      "name": "INVOCATION",
      "type": "client",
      "parameters": {
        "lambdaUuid": "4ec49ffc-080b-4e59-b302-18d6b826191b",
        "payload": "{ "some": "stuff"}",
        "failOnError": true

      },
      "result_variable": "none"
    }
  ]
}

Figure 3.6 Watson Assistant JSON response for invoking LivePerson Function

To retrieve the lambdaUuid of your LivePerson Function follow this guide

In addition, it is possible to send your own payload to the function. Set your content inside the payload parameter

The bot does not escalate on a failed invocation by default. To enable this, set the additional parameter failOnError to true

Engagement attributes as context

Third-Party bots allows the collection of engagement attributes (more information can be found here) if Engagement Attributes option is checked in the Conversation Type step as shown in Figure 3.7.

Figure 3.7 Conversation Type step in creation/modification of bot configuration.

These attributes are only collected at the start of a conversation. Third-Party bots leverage the LivePerson Visit Information API to collect the engagement attributes, Further information Visit Information API can be found here. Moreover, Engagement attributes are not updated throughout the life cycle of a conversation and only passed along with each message request. In Watson Assistant V1 these engagement attributes are added to the property lpSdes. For the preservation of these attributes within a conversation, context property is used (further information about context can be found here). An example of the request body can be seen below:

{
  "message": "Some Message",
  "context": {
    // … contains some more information about conversation as well
    "lpEvent": {}, // Holds LP Events
    "lpSdes": {} // Holds SDES
  }
}

Receiving Rich Content Response (Messaging Only)

Third-Party Bots allows LivePerson's Rich Messaging channel capabilities not only to be received as a response from the vendor but also, allow Rich Messages (Structured Content) to be sent back to the vendor based on specific user interactions/responses (For example user sharing their location on WhatsApp). Please note these capabilities are sometimes limited by the channels in which the conversation is happening. For the list of Rich Messaging capabilities for each channel, browse or search the table on the Knowledge Center.

An example use case of the Rich Content Event (RichContentEvent) response sent by Third-Party Bots is described below. The example will show how to set up and access the RichContentEvent response with Watson Assistant after a user shares the location.

Usually a RichContentEvent of type map/location will have following JSON schema:

{
  "content": {
    "type": "vertical",
    "elements": [
      {
        "la": 49.82380908513249,
        "type": "map",
        "alt": "49.82380908513249, 2.021484375",
        "lo": 2.021484375
      }
    ]
  },
  "type": "RichContentEvent"
}

Create Intent for RichContentEvent

We needs to create a intent that should have training phase com.liveperson.bot-connectors.consumer.send-rich-content as shown in the Figure 3.8 below

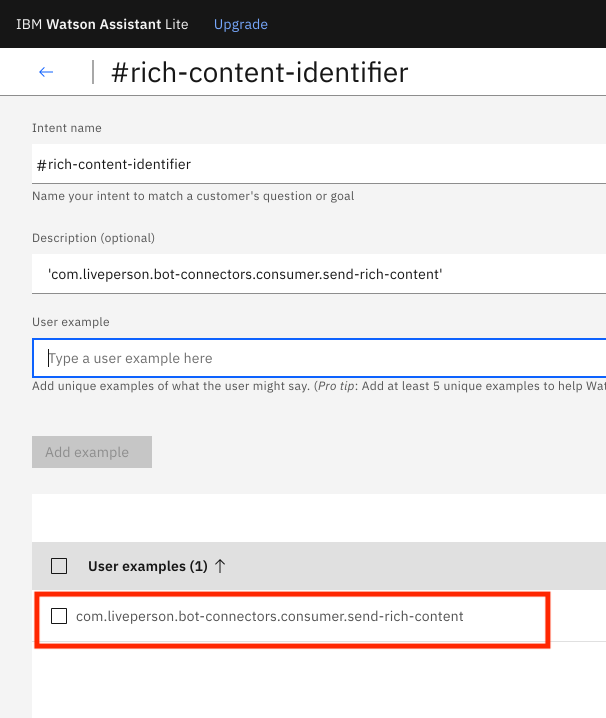

Figure 3.8 Intent creation in Watson Assistant console

Access RichContentEvent in Dialog

There are two ways in which a RichContentEvent can be accessed in IBM Watson Assistant. You can either access the raw data directly in the node configuration or you can leverage the IBM Cloud Functions to handle more complex scenarios for your business cases. We will define our demo example for both use cases below.

Accessing the RichContentEvent via node configuration

The RichContentEvent is sent with the context. Thus, for Watson Assistant, we can leverage the Context Variables for accessing the RichContentEvent data. The context information that is sent by Third-Party Bots contains in $lpEvent. An example of accessing RichContentEvent from that context variable can be seen in Figure 3.9.

Figure 3.9 Displaying how to access the Rich Content/Structured Content using Context Variables

Accessing the RichContentEvent Data via IBM Cloud Functions

The RichContentEvent is sent with the context. Thus, for Watson Assistant, we can leverage the IBM Cloud Functions for responding to the RichContentEvent. The RichContentEvent information is accessed via Context Variables. The context variable that is sent by the Third-Party bot is $lpEvent.

We can use an action cloud function to access the RichContentEvent data and attach this action as a webhook to the IBM Watson Assistant instance.

A code snippet of an IBM Cloud Function of type action can be seen below. This LivePerson function will check if the input payload has RichContentEvent in the request and then will respond with the map/location body.

/**
 *
 * main() will be run when you invoke this action
 *
 * @param contains the lpEvent variables that is passed from the Dialog Node
 *
 * @return The output message for for Rich Content Event
 *
 */
function main(params) {
  const { lpEvent: { event = {} } = {} } = ({} = params);

  let message = "rich content not found";

  if (event && event.type && event.type === "RichContentEvent") {
    // Default response for Rich Content
    message = `Found Rich Content Event Raw data: ${JSON.stringify(event)} `;

    // If we find Rich Content Event of type Map then respond different for E2E Tests
    if (
      event.content &&
      event.content.elements &&
      event.content.elements &&
      Array.isArray(event.content.elements)
    ) {
      message = `you sent me this location: ${event.content.elements[0]}`;
    }
  }

  return { message };
}

Once the function is created and you have the link to the endpoint to call the IBM Cloud Function, this can then be attached to an IBM Watson Assistant instance via the Webhooks option. An example of this can be seen in Figure 3.10 below

Figure 3.10 IBM Watson Assistant Webhooks configuration to an IBM Cloud Function

Please Note the ending of the endpoint with .json this is needed to be added additionally to the endpoint of the IBM Cloud Function if you expect the response from the IBM Cloud Function as JSON Object. Like in our above example code of function it was in the property message.

After setting up the Webhook configuration we need to now configure the Dialog node which is replying to the intent of RichContentEvent an example of the configuration of the dialog node can be seen in Figure 3.11 below:

Figure 3.11 A Dialog Node setup for a RichContentEvent

We can see in Figure 3.11 that $lpEvent context variable is passed as parameter lpEvent which was accessed in the IBM Cloud Function implementation we wrote above. The result is returned to the variable webhook_result_1 and then the response is accessed via $webhook_result_1.message.

A demo of our WhatsApp map example with both of the above bot configurations (defined above) can be seen below:

Receiving Last consumer message (Messaging Only)

Third-Party bot now provides a way to add the last consumer message as a part of the welcome event. When an ongoing conversation gets transferred to a new Agent or Skill, This enhancement will allow brands to respond to the last consumer message uttered as per their needs.

The last consumer message is passed via the property lastConsumerMessage which is part of another property lpEvent that is sent with context information by Third-Party Bots. Thus, for Watson Assistant, we can leverage the Context Variables

An example of accessing lastConsumerMessage from that context variable can be seen in Figure 3.12.

Figure 3.12 Displaying how to access the last consumer message using Context Variables

Watson Discovery

Discovery Search is a tool that uses the knowledge of websites, documents and other data, to generate an answer the Watson Bot is able to send within a conversation. If enabled, the bot searches for matching parts of the provided information on specified intents or in case no matching intent was found.

To use Watson Discovery the Watson Assistant Bot needs to have a search skill linked to a Watson Discovery Instance

Disambiguation Responses

Disambiguation is a feature configurable in the Watson Assistant UI. It triggers if a bot can't confidently identify an intent. Find details on how it works here. Disambiguation responses will be renders as Quick Replies.

Figure 3.13 Configure Watson Disambiguation

Prevent Transferring loop behavior

As a good practice and to prevent that the bot goes into a conversation loop during off hours, create a separate bot for off-hour times that only listens to the human skill and not to the regular bot skills. If another bot is not created for that period, the bot can get into a transferring loop.

Limitations

Currently IBM Watson Assistant retains sessions only for 5 minutes for Free and 60 minutes for Plus or premium members. For more information read here
Currently IBM Watson allows only 5 response types per node.
